How to Choose Between 21700 and 18650 Batteries for Your Needs
When comparing the 21700 and 18650 batteries, it’s essential to understand their differences in size, capacity, and application suitability. The 21700 battery typically offers higher capacity and is better suited for high-drain devices, while the 18650 remains popular due to its smaller size and broader availability.
How do 21700 and 18650 batteries compare in size and capacity?

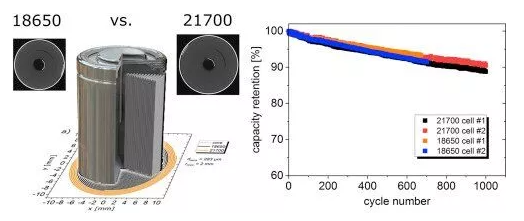

The 21700 battery measures 21mm in diameter and 70mm in length, while the 18650 measures 18mm by 65mm. This size difference results in the 21700 having a significantly larger volume, allowing it to store more energy. For instance, a standard 21700 cell can have a capacity ranging from 4000mAh to 5500mAh, compared to the 18650, which typically ranges from 2600mAh to 3600mAh.
| Battery Type | Diameter (mm) | Length (mm) | Capacity (mAh) |
|---|---|---|---|
| 18650 | 18 | 65 | 2600 – 3600 |
| 21700 | 21 | 70 | 4000 – 5500 |
What are the advantages of using a 21700 battery over a 18650?
The primary advantage of the 21700 battery is its higher energy density, which translates into longer run times for devices. This makes it particularly suitable for applications requiring sustained power output, such as electric vehicles (EVs) and high-performance power tools. Additionally, because fewer cells are needed to achieve the same voltage or capacity, 21700 packs can be cheaper to manufacture and assemble.
Why are 21700 batteries considered better for high-drain applications?

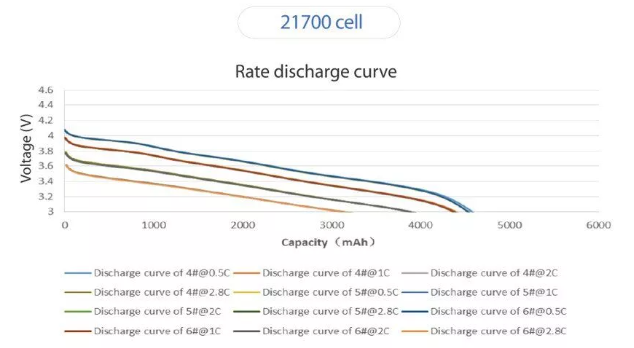

The larger size of the 21700 allows it to handle higher discharge rates effectively. This characteristic makes it ideal for high-drain applications like power tools and e-bikes, where significant bursts of power are needed. In contrast, while the 18650 can perform adequately in many situations, it may struggle under heavy loads, leading to reduced performance or shorter life spans.
How does charging differ between 21700 and 18650 batteries?
Both battery types operate at similar voltages (approximately 3.6V to 3.7V) and can generally be charged with compatible lithium-ion chargers. However, it’s crucial to note that while you can charge a 21700 battery in a charger designed for an 18650, it’s not recommended due to potential safety risks associated with mismatched charging currents. Using a charger specifically designed for each type ensures optimal performance and safety.
What applications are best suited for each battery type?

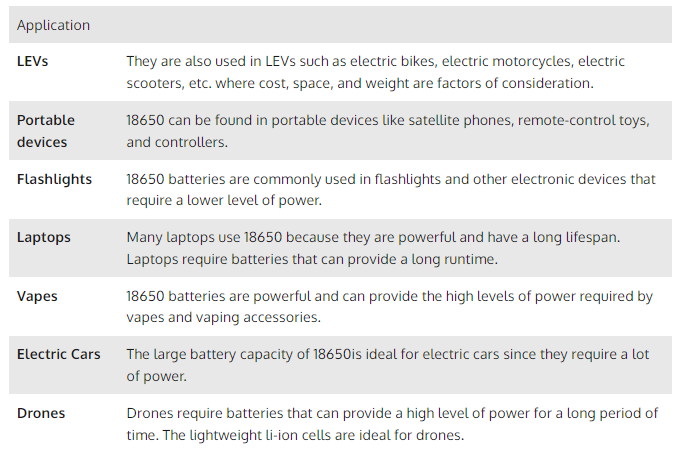

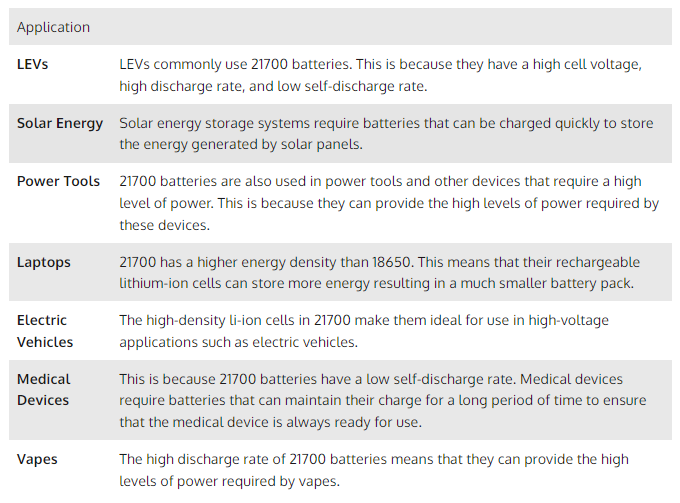

The 18650 battery is widely used in laptops, flashlights, and various consumer electronics due to its compact size. Conversely, the 21700 is increasingly found in electric vehicles, advanced power tools, and other high-demand applications where longevity and power output are critical.
| Application | Best Suited Battery |
|---|---|
| Laptops | 18650 |
| Flashlights | 18650 |
| Electric Vehicles | 21700 |
| High-performance tools | 21700 |
How can you make informed decisions when purchasing batteries?
When selecting between these two types of batteries, consider factors such as device compatibility, required power output, size constraints, and budget. The growing availability of both types means that users have options tailored to their specific needs.
What insights do experts provide on lithium battery choices?
“Choosing between a 21700 and an 18650 should be based on your specific usage requirements. If your application demands high energy density and discharge rates, opt for the 21700; otherwise, the versatile 18650 will suffice.”
Buying Tips
When considering OEM orders for lithium batteries like those from Redway Battery—a reputable manufacturer with over thirteen years of experience—ensure you assess your specific requirements carefully. Look for manufacturers that offer customization options based on capacity needs while providing reliable quality assurance processes.
FAQ Section
Q: Can I use a charger designed for an 18650 battery to charge a 21700?
A: While it is technically possible, using a charger specifically designed for each type is recommended for safety reasons.Q: Which battery lasts longer?
A: Generally, the 21700 lasts longer due to its higher capacity compared to most 18650 cells.Q: Are there any disadvantages of using a larger battery?
A: The main disadvantage is that the larger size may not fit in devices designed specifically for 18650 cells.Q: What should I consider when purchasing lithium batteries?
A: Consider device compatibility, required power output, budget constraints, and whether you need higher energy density or compact size.
